When your PS5 powers on but the TV says “No Signal,” the first question is almost always the same: do I buy a new PlayStation 5, or can this be fixed?
For most people, the answer is clear: repairing the HDMI port is far cheaper than buying a new console. A new PS5 runs around $599–$649. At CarliPhone in Largo, FL, a PS5 HDMI port repair is $149 — and we sometimes run discounts on top of that. That’s a difference of roughly $450 to $500 to keep the exact console you already own.
Quick comparison: repair vs. replace
For most PS5 owners, repairing the HDMI port is the better financial decision.
Here is the simple comparison:
| Option | Typical Cost |
|---|---|
| PS5 HDMI Port Repair at CarliPhone Local service in Largo FL · Warranty included | $149 |
| New PS5 Digital Edition No disc drive | $599 |
| New PS5 Console 1 TB With disc drive | $649 |
Repairing instead of replacing saves you about $450–$500, and you keep your games, saved data, and accounts exactly as they are.
What we actually see in our shop
This isn’t a guess — it’s what we deal with at CarliPhone every month. Here are our real numbers:
- We repair 6 to 10 PS5 HDMI ports a month, so this is a routine job for us, not a one-off.
- Of every 10 PS5s that come in with “No Signal,” only 1 or 2 turn out to have a deeper problem than the HDMI port. The other 8 or 9 just need the port repaired.
- We successfully repair about 95% of the PS5 HDMI ports that come through the shop.
- Most repairs are finished the same day, depending on the workload that day.
- Every HDMI repair comes with a 90-day warranty on the soldering work (this covers our work, not new physical damage caused by the user afterward).
That 1-or-2-out-of-10 figure is the important one. A PS5 with no picture almost always looks dead, but in the large majority of cases the console itself is fine — only the HDMI port is damaged.
Why PS5 HDMI ports break
Almost every PS5 HDMI failure we see comes from physical stress on the port, not an internal hardware fault. The HDMI port is soldered directly to the console’s motherboard, so when the cable gets pulled, bent, or forced, that stress goes straight into the board.
By far the most common story is simple: someone moved the console with the HDMI cable still plugged in, or tripped over the cable. One of our favorite real cases — a wife walked past the entertainment center and clipped the HDMI cable just right, killing the port. Her husband was not happy about the bill. (They’re still married. We checked.)
Common causes:
- Moving the PS5 while the HDMI cable is still plugged in
- Tripping over or yanking the cable
- A tight TV-stand setup that bends the cable at a sharp angle
- Forcing the cable into the port
- A cheap or damaged HDMI cable
That’s why the failure usually shows up suddenly: the console worked yesterday, and today it’s “No Signal” even though the fan spins and the light comes on.
What we sometimes find inside
Because we open these consoles up, we see things most people never do. PS5s pull in a surprising amount of dust and debris — and sometimes more than that. The last one we opened had a dead lizard inside the console. It’s a good reminder that PS5s breathe in everything around them, so keeping the area clean and giving the console airflow genuinely matters for its lifespan.
When buying a new PS5 actually makes sense
We don’t push repairs that don’t make sense. For the 1–2 out of 10 consoles with bigger problems, replacement can be the smarter call. Buying new is worth considering when:
- The motherboard has severe or multiple-point damage
- There’s liquid damage or corrosion
- The HDMI damage also took out nearby board components
- The console has stacking issues (power, overheating, storage) on top of the HDMI fault
- The total repair cost climbs close to the price of a new console
But if the HDMI port is the only real problem — which is usually the case — a $149 repair beats a $599+ replacement every time.
How the repair actually works

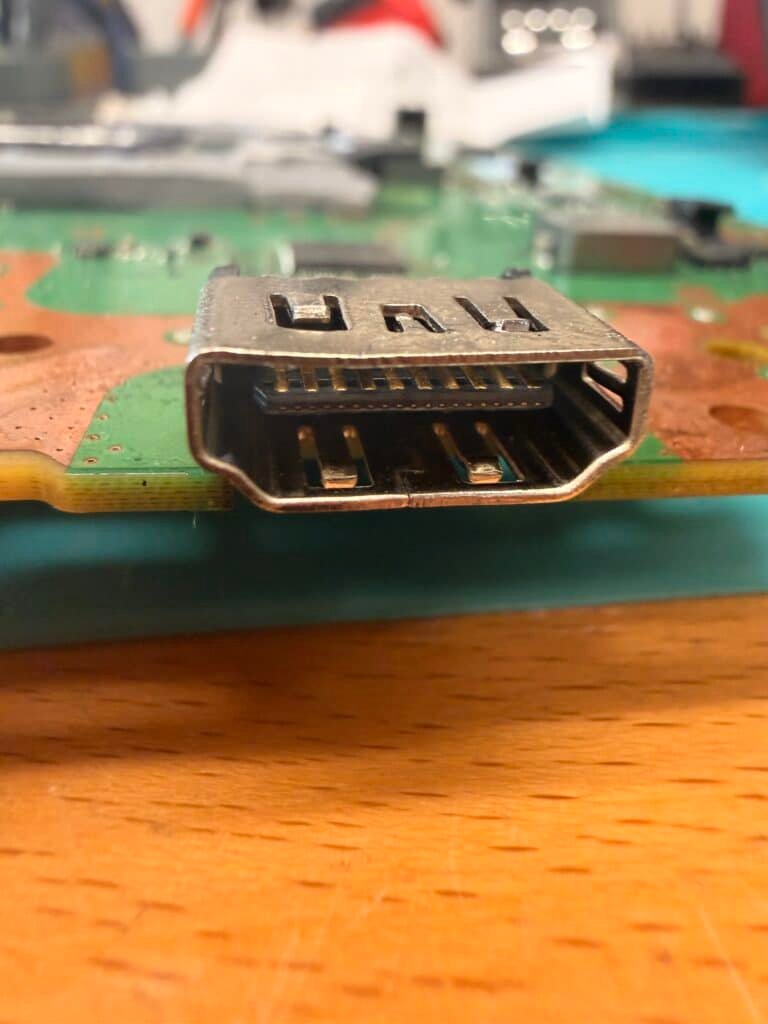

This is not the same as swapping an HDMI cable. The PS5 HDMI port is soldered to the motherboard, so replacing it is a micro-soldering, board-level job. It requires fully disassembling the console, removing the damaged port without lifting the pads on the board, soldering the new port cleanly, and then testing that video output is stable before it goes back to you.
That’s why doing it yourself is risky unless you already have the equipment and experience: one mistake can damage the board and turn a $149 repair into a much bigger one. It’s also why the price reflects skill and testing, not just the cost of the part.
Before you bring it in: quick checks
A black screen isn’t always the port. Before assuming the worst, try this:
- Swap in a known-good HDMI cable.
- Try a different HDMI input on your TV.
- Confirm the PS5 powers on (fan, light, beep).
- Look at the port for bent pins or a loose, wobbly fit.
- If the picture only works when you hold the cable at a certain angle — that’s a classic sign the port is failing.
If those don’t fix it, bring it to us for a diagnosis before spending hundreds on a replacement.
PS5 HDMI repair in Largo & the Tampa Bay area
CarliPhone is a local electronics repair shop in Largo, FL, serving customers across Largo, Clearwater, St. Petersburg, Pinellas Park, Seminole, and Tampa. We repair game consoles, phones, tablets, and other electronics — and that daily board-level experience is exactly what a PS5 HDMI repair needs.
CarliPhone 1600 Missouri Ave N #100, Largo, FL 33770 Phone: (727) 396-8008 Mon–Sat, 10:00 AM – 7:00 PM
Before you spend $599 or more on a new console, bring your PS5 in and let us check it. Most of the time, you don’t need a new PlayStation at all.
Signs Your PS5 HDMI Port Needs Repair
A damaged HDMI port usually gives you clear warning signs.
The most common one is “No Signal.” You turn on the PS5, the console lights up, but the TV does not show anything. This is the classic symptom customers describe when they bring a PlayStation 5 to CarliPhone.
Another common sign is a loose HDMI connection. If the HDMI cable wiggles too much or only works when held at a certain angle, the port may be damaged internally. Some customers tell us the console worked for a while if they angled the cable “just right,” but then it stopped working completely. That is a strong sign that the port or solder connection is failing.
You may also notice flickering video, random blackouts, distorted display, or a picture that cuts in and out. These symptoms can happen when the HDMI connection is unstable.
Look for these signs:
- PS5 turns on but there is no image.
- TV says “No Signal.”
- HDMI cable feels loose.
- Video cuts in and out.
- Screen flickers.
- Port looks bent, cracked, or pushed inward.
- Pins inside the HDMI port look damaged.
- Console only works when the cable is held at a certain angle.
- The problem started after moving the console.
That last point is important. In our experience at CarliPhone, many PS5 HDMI repairs start with the same story: “I moved the console, and now there is no display.” That is why we always recommend unplugging the HDMI cable before moving the system, even if you are only moving it a few feet.
A damaged HDMI port is not something you should keep forcing. If the cable is loose or the image is cutting in and out, forcing the cable can make the damage worse. It can bend more pins, damage the connector further, or create board-level issues that cost more to repair.
How to Prevent HDMI Port Damage After Repair
Once your PS5 HDMI port is repaired, the goal is to avoid damaging it again.
The best prevention tip is also the simplest: always unplug the HDMI cable before moving the console.
This is the number one habit we wish every PS5 owner had. Many HDMI ports get damaged not because of heavy use, but because the console gets moved while the cable is still connected. Even a small pull at the wrong angle can stress the port.
Here are a few ways to protect your PS5 HDMI port:
Unplug before moving the console
Even if you are only moving the PS5 from one shelf to another, unplug the HDMI cable first. Do not let the cable drag, twist, or pull on the port.
Avoid tight cable angles
If your PS5 is pushed too close to the wall or back of an entertainment center, the HDMI cable may bend sharply. That constant pressure can weaken the port over time.
Keep the console stable
Do not place the PS5 where it can easily be knocked over, kicked, or pulled by cables. A stable setup protects the HDMI port and the rest of the console.
Use a good HDMI cable
A cheap or damaged cable can fit poorly, feel loose, or require extra force. Use a quality HDMI cable that fits cleanly without needing pressure.
Do not force the cable
If the HDMI cable does not slide in correctly, stop. Forcing it can bend pins inside the port.
Check your setup after repair
After the repair, make sure the cable has enough space behind the console. The goal is to keep pressure off the HDMI connection.
At CarliPhone, we usually remind customers that the repair is only part of the solution. The other part is changing the habit that caused the damage in the first place. Most PS5 HDMI problems can be avoided with better cable handling.
FAQs
Is it cheaper to repair a PS5 HDMI port or buy a new PS5?
In almost every case, repairing is cheaper. A PS5 HDMI repair at CarliPhone is $149, while a new PS5 runs about $599–$649 — a savings of roughly $450–$500.
How much does PS5 HDMI port replacement cost?
At CarliPhone, PS5 HDMI port replacement is $149, and we occasionally offer discounts. The price covers the new port, the micro-soldering labor, testing, and a 90-day warranty on the soldering work.
Is PS5 HDMI repair worth it?
Yes, as long as the console still powers on and the main issue is no display. We successfully repair about 95% of the PS5 HDMI ports that come into our shop, and 8–9 out of 10 consoles with “No Signal” only need the port — not a full replacement.
How long does the repair take?
Most PS5 HDMI repairs are completed the same day, depending on the shop’s workload that day.
Can I fix a PS5 HDMI port myself?
It’s not recommended without the right tools and experience. The port is soldered to the motherboard, so a mistake can damage the board and turn a simple repair into a costly one.
Why does my PS5 say "No Signal"?
It can be the HDMI cable, the TV input, or the HDMI port itself. If the console powers on but shows no image — especially after being moved or having the cable pulled — the HDMI port is the most likely cause.
Where can I get a PS5 HDMI port repaired near Tampa Bay?
CarliPhone in Largo, FL serves Largo, Clearwater, St. Pete, Pinellas Park, Seminole, and Tampa for PS5 HDMI repair and other electronics repairs.
